Rhepanol hfk, the Roofing Membrane for every Type of Installation
Rhepanol hfk is the universally applicable PIB premium roofing membrane with XXL membrane width and the option of hot-air welding.
Rhepanol hfk makes the high-quality sealing of flat roofs easy. The roofing membrane is suitable for any flat roof – no matter whether mechanically fastened or glued layered structures, green roofs, gravel roofs or roofs used for other purposes. Rhepanol hfk offers the option of hot-air welding and XXL sheet widths as sensible additions to the proven Rhepanol thicknesses, fast and safe installation and extreme durability.
The homogeneous and fleece-laminated synthetic roofing membrane based on polyisobutylene (PIB) is FLL-certified to DIN EN 13948 and available in membrane widths of up to 1.50 m. The roofing membrane is also available in a range of different widths. Rhepanol hfk can be used mechanically fastened in the covered membrane edge, in the Velcro system or in combination of both techniques on unused roof surfaces up to 20° inclination.
Other fields of application are, for example, strip bonding to ensure that the roofing membrane can move freely as far as possible, loose laying with ballast and laying under green roofs.
With Rhepanol hfk, large roof areas can be covered quickly and very reliably homogeneously. Since the Velcro fastening system and the hem fastening can be combined, peeling loads on the seam joint and unnecessary perforations in the laid roofing membrane are avoided. At the same time, the possibility of using the 1.50 m wide membranes in the edge and corner areas significantly reduces the proportion of seam. The result is lower installation costs and improved sealing quality.
Hot-air weldable roofing membrane with fleece-free edge
Two-layer sealing matrix (top film and bottom film)
Plastic fleece lamination
The advantages of Rhepanol hfk:
Service Aera
Rhepanol General Product Information Brochure
In this brochure you will find an overview of all important information on the advantages and applications of our Rhepanol roofing membrane.

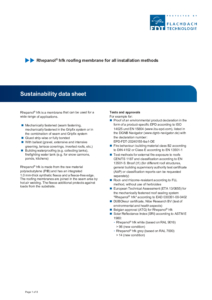

Sustainability data sheet
In this data sheet you will find all important information regarding sustainability and our roofing membrane Rhepanol hfk.

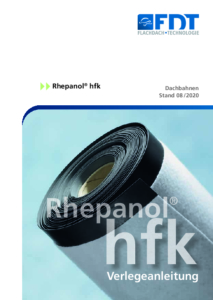

Laying instructions
In this document we describe step by step how the Rhepanol roofing membranes are laid. Nothing will go wrong on the roof.
Laying videos on YouTube (Playlists)
Laying videos
See in the installation video how our roofing membrane is processed in detail.
These videos are a playlist from YouTube. You can view all the videos on the subject in the top right-hand corner. Have fun!
Laying videos Rhepanol roofing membranes
Design details roofing membrane Rhepanol
Accessories
Technical manual
In the technical manual for our Rhepanol roofing membranes, we have summarised all technical information for you: from product advantages to application technology to data sheets.
CE data sheet
CE data sheet: In the CE data sheet we confirm the conformity of our product with the valid legal regulations of the EU.

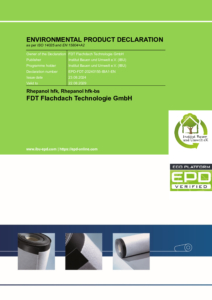

Environmental Product Declaration
In this declaration you will find all environmentally relevant information for our Rhepanol products according to the EPD program.
The EPD program is based on international standards. ISO 14025 regulates the principles and procedures for Type III environmental labels, which provide quantified environmental information from the life cycle of a product.

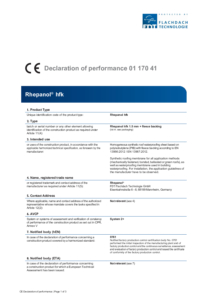

Declaration of performance EN13956
Declaration of performance EN13956
With the declaration of performance we confirm the conformity of our product with the applicable legal standards or the technical assessments of the EU.
Detailed drawings
Detailed drawings
You can use our detailed drawings for your individual planning and import them into your planning tools. They are available in different formats.
Rhepanol hfk Detail drawing loosely laid with ballast Connection to curtain-type gutter

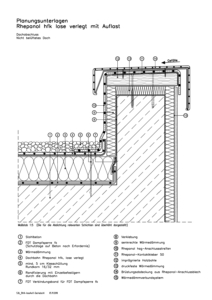

Rhepanol hfk detail drawing loose laid with ballast roof end 1

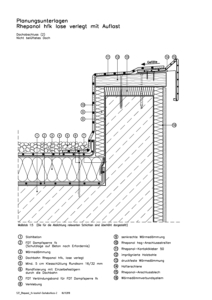

Rhepanol hfk detail drawing loose laid with ballast roof end 2

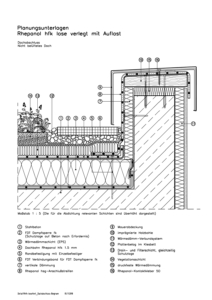

Rhepanol hfk detail drawing loose laid with ballast roof end 3
Rhepanol hfk Detail drawing loose laid with ballast Gully with gravel

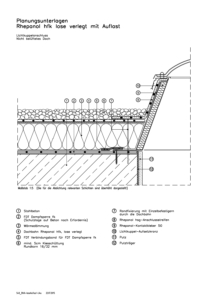

Rhepanol hfk Detail drawing loose laid with ballast domelight connection

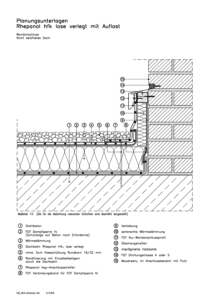

Rhepanol hfk Detail drawing loose laid with ballast Wall connection

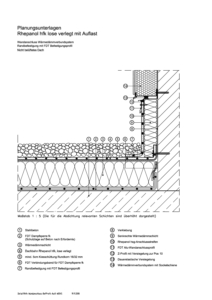

Rhepanol hfk Detail drawing loosely laid with ballast Wall mounting ETICS FDT fastening profile

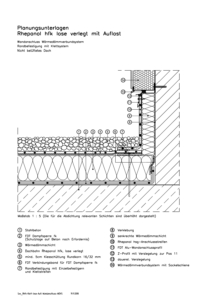

Rhepanol hfk Detail drawing loosely laid with ballast Wall attachment WDVS Velcro

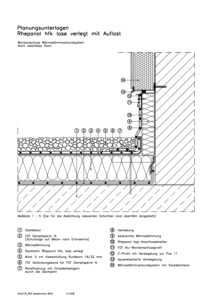

Rhepanol hfk Detail drawing loosely laid with ballast Wall mounting WDVS
Rhepanol hfk Detail drawing mechanically fastened Connection to curtain gutter in covered membrane edge
Rhepanol hfk Detail drawing mechanically fastened Connection curtain-type gutter Velcro

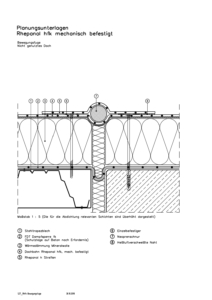

Rhepanol hfk Detail drawing mechanically fixed Movement joint

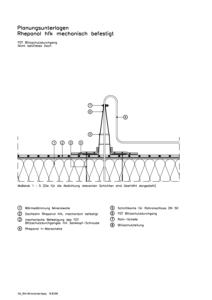

Rhepanol hfk detail drawing mechanically fixed lightning protection passage

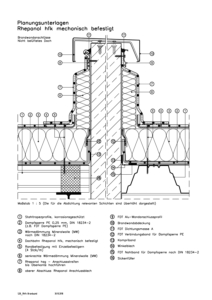

Rhepanol hfk detail drawing mechanically fixed fire wall connections

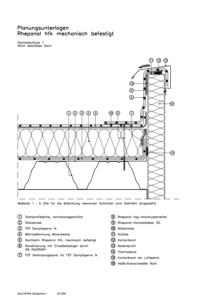

Rhepanol hfk Detail drawing mechanically fixed Roof end 1

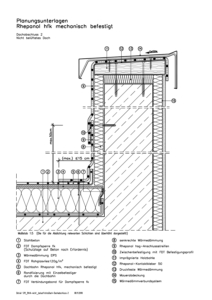

Rhepanol hfk Detail drawing mechanically fixed Roof end 2

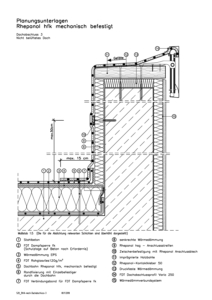

Rhepanol hfk Detail drawing mechanically fixed Roof end 3
Rhepanol hfk Detail drawing mechanically fastened

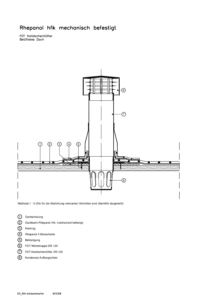

Rhepanol hfk detail drawing mechanically fixed cold roof ventilator

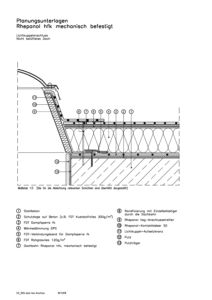

Rhepanol hfk Detail drawing mechanically fixed Domelight connection

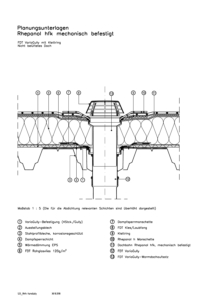

Rhepanol hfk Detail drawing mechanically fixed VarioGully with Velcro ring

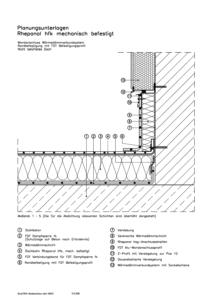

Rhepanol hfk Detail drawing mechanically fastened ETICS FDT fastening profile

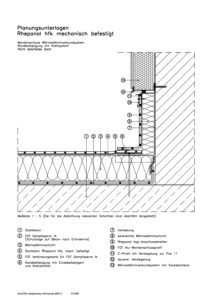

Rhepanol hfk Detail drawing mechanically fixed WDVS Velcro
Rhepanol hfk detail drawing glued fixed connection to curtain-type gutter

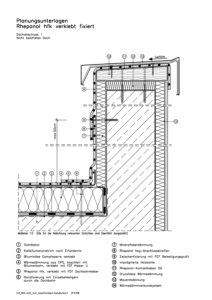

Rhepanol hfk detail drawing glued fixed roof end 1

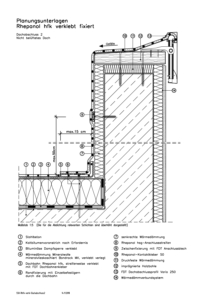

Rhepanol hfk detail drawing glued fixed roof end 2

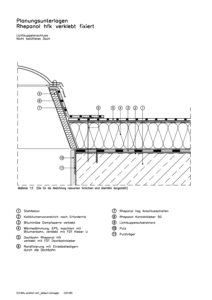

Rhepanol hfk detail drawing glued fixed domelight connection

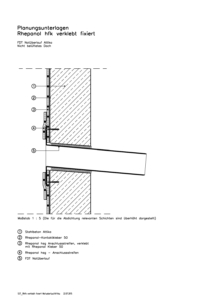

Rhepanol hfk detail drawing glued fixed emergency overflow attic

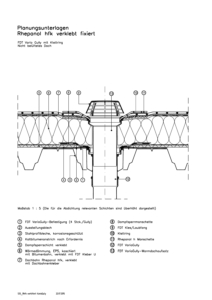

Rhepanol hfk Detail drawing glued fixed VarioGully with Velcro ring

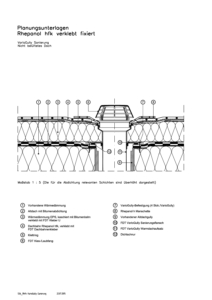

Rhepanol hfk detail drawing glued fixed VarioGully renovation

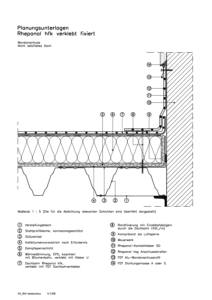

Rhepanol hfk detail drawing glued fixed wall connection

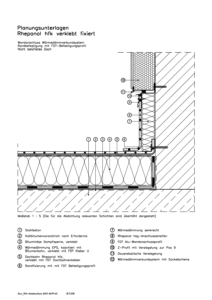

Rhepanol hfk detail drawing glued fixed wall connection ETICS FDT fastening profile

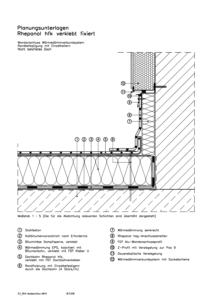

Rhepanol hfk detail drawing glued fixed wall connection WDVS
