System Accessories for Rhepanol Roofing Membranes

Safety and economy: Our range of accessories

With our extensive range of accessories, we want to ensure that you can implement your flat roof project safely and economically. The range of design options extends from optimum layer build-up to detailed design, useful and practical features to the optical refinement of a roof surface. There is a suitable solution for every need.

The accessories for drainage and emergency drainage enable the direct and effective drainage of rainwater.

Protective sheets, separating layers and fleeces of the highest quality are available for optimum layer build-up.

Vapour barriers and sealing tapes provide reliable protection against water vapour and moisture.

A wide range of system accessories for the safe and visually attractive design of flat roofs rounds off the range. Here you will find composite sheets, the FDT roof end profile Vario, vapour pipes, cold roof ventilators, the standing seam profile and the roof colour, the gravel guard made of stainless steel, the pavement slab and the snow guard.

Essential tools for professional, clean roof waterproofing are also FDT adhesives, pastes and cleaners.

We will be happy to advise you on the right product selection.

Accessories for Rhepanol hfk / hg

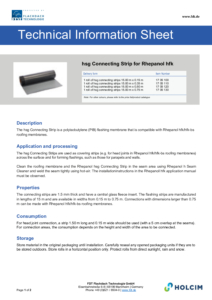

hsg Connecting Strip for Rhepanol hfk

Connecting strip made of PIB with glass fleece reinforcement. The material is used as a connection sheet and cover strip in the field area and is suitable for forming connections, for example to parapets and walls.

hsg Connecting Strip for Rhepanol hfk

Rhepanol h

Rhepanol h

Rhepanol h inside corner 90°

Molded part for forming inside corners on Rhepanol hfk / hg / hfk-bs roofing membranes.

Rhepanol h outside corner 90° and for skylight domes 73°/60°

Molded part for forming outside corners and skylight dome connections on Rhepanol hfk / hg / hfk-bs roofing membranes.

Rhepanol h drain collar

Molded part for securely connecting Rhepanol hfk / hg / hfk-bs roofing membranes to the FDT VarioGully. The hook-and-loop ring listed below is also required for connection to Rhepanol hfk roofing membranes.

Rhepanol hook-and-loop ring

Molded part for fixing the Rhepanol hfk roofing membrane to the FDT VarioGully. Diameter: 350 mm.

Rhepanol h universal collar

Molded part for built-in components and penetrations up to 250 mm on Rhepanol hfk / hg / hfk-bs roofing membranes. Diameter: 340 mm. For Rhepanol hfk, please also order the matching hook-and-loop ring.

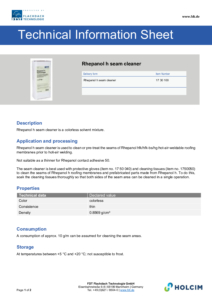

Rhepanol h seam cleaner

For cleaning and pre-treating seams on hot-air weldable Rhepanol roofing membranes. Consumption: approx. 10 g/m. Permissible storage time at least 4 years.

Rhepanol h seam cleaner

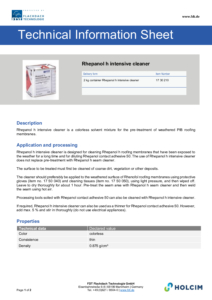

Rhepanol h intensive cleaner 50

For cleaning heavy soiling on hot-air weldable Rhepanol roofing membranes. For thinning Rhepanol contact adhesive 50. Permissible storage time at least 4 years.

Rhepanol h intensive cleaner 50

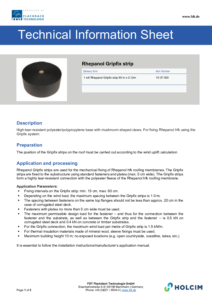

Rhepanol Gripfix strip

High-tear-strength polyester carrier with mushroom hooks. For fastening Rhepanol hfk in the hook-and-loop system. Fastening is carried out with standard fasteners and stress plates.

Gripfix strip

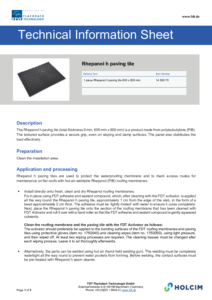

Rhepanol h paving tile

Rhepanol h paving tile

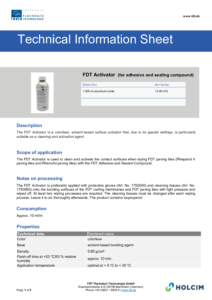

FDT Activator

FDT Activator

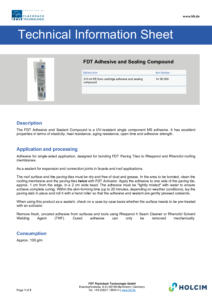

FDT Adhesive and Sealing Compound

FDT Adhesive and Sealing Compound

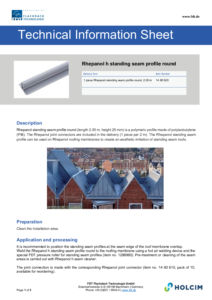

Rhepanol h standing seam profile, round

For hot-air welding onto Rhepanol hfk. For an aesthetic standing-seam appearance. Includes Rhepanol joint connector (1 pc./2 m). Can be coated with Rhepanol roof paint. Profile height: 25 mm, profile length: 2.00 m.

Rhepanol h standing seam profile, round

Standing seam profile flyer

Standing seam profile flyer

Rhepanol joint connector

Rhepanol joint connector as an accessory for additional joints in the Rhepanol h standing seam profile.

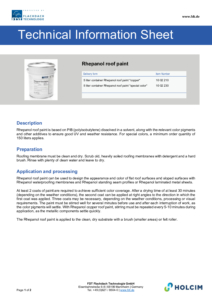

Rhepanol roof paint

Special roof paint based on PIB. For decorative coating of all Rhepanol roofing membranes, also in combination with Rhepanol standing seam profiles. Consumption: approx. 0.25 l/m² for two coats. Permissible storage time at least 2 years.

Rhepanol roof paint

Rhepanol connection collar

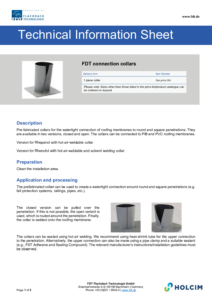

FDT connection collars

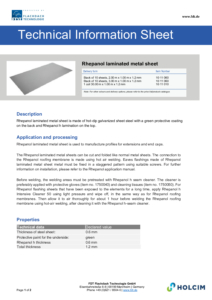

Rhepanol laminated metal sheet

Hot-dip galvanized steel sheet laminated with Rhepanol h and a green protective coating on the reverse side. For producing profiles for connections and terminations. Can be cut and folded like galvanized sheet metal. All Rhepanol roofing membranes can be connected to Rhepanol laminated metal sheet (sheet thickness: 0.6 mm, coating: 0.6 mm).

Product datasheet Rhepanol laminated metal sheet

FDT adhesive tape

Specially coated adhesive tape for forming joints in Rhepanol laminated metal sheets.

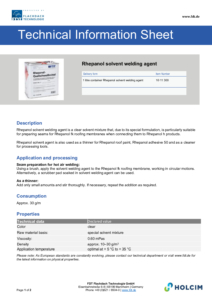

Rhepanol solvent welding agent

Rhepanol solvent welding agent

Liquid, solvent-based adhesive based on synthetic rubber. For strip bonding Rhepanol hfk onto synthetic roofing membranes. Shelf life at least 2 years.

Rhepanol adhesive 90

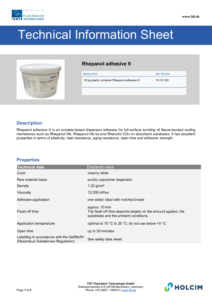

Rhepanol adhesive 9

Acrylate-based dispersion adhesive. For full-surface bonding of Rhepanol hfk onto chipboard and construction plywood up to a roof pitch of 15°. Consumption: approx. 300-400 g/m². Permissible storage time at least 1 year.

Rhepanol adhesive 9

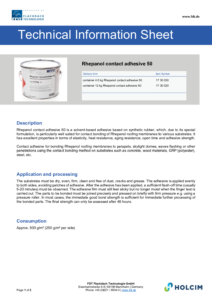

Rhepanol contact adhesive 50

For bonding Rhepanol roofing membranes to concrete, wood, polyester, steel, etc. Not suitable for bonding to polystyrene. Consumption: approx. 500 g/m2 (250 g/m² per side). Permissible storage time at least 2 years.

Rhepanol contact adhesive 50

Accessories for all FDT roofing membranes

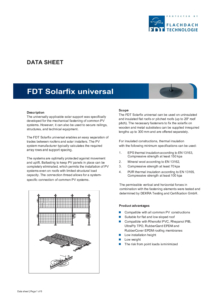

FDT Solarfix universal

FDT Solarfix universal

FDT Solarfix universal

Adhesives

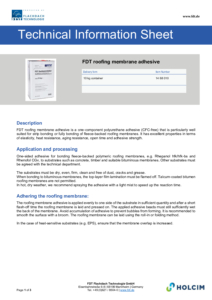

FDT roofing membrane adhesive

Important: Since August 24, 2023, training is required for the use of PU adhesives and sealants containing diisocyanates.

Learn more here

FDT roofing membrane adhesive

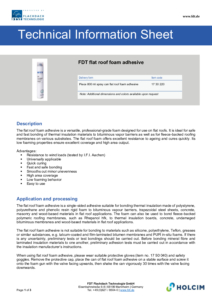

FDT flat roof foam adhesive

Universally applicable 1C adhesive foam with wind-uplift stability. You can find all important information in the datasheet.

Important: Since August 24, 2023, training is required for the use of PU adhesives and sealants containing diisocyanates.

Learn more here

FDT flat roof foam adhesive

FDT spray and gun cleaner (PU foam cleaner) for removing fresh, uncured soiling and for flushing and cleaning application guns.

Vapor barriers, sealing tapes

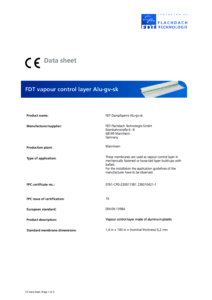

FDT vapor barrier Alu-gv-sk

Fabric-reinforced and self-adhesive aluminum composite foil according to DIN 18234. sd > 1,500 m (practically vapor-tight). Fire class B2 or class E.

FDT vapor barrier Alu-gv-sk

Declaration of Performance vapor barrier Alu-gv-sk

FDT PE vapor barrier

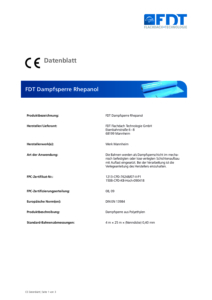

FDT Rhepanol vapor barrier

Polyethylene foil with sd > 160 m. For loosely laid or mechanically fastened layer build-ups with Rhepanol roofing membranes and for non-air-conditioned occupied rooms according to DIN 4108, Part 3. Fire class B2 or class E.

FDT Rhepanol vapor barrier

Declaration of Performance Rhepanol vapor barrier

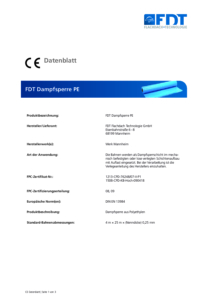

FDT PE vapor barrier

FDT PE vapor barrier

Polyethylene foil with sd ≥ 100 m. For loosely laid or mechanically fastened layer build-ups with Rhenofol roofing membranes and for non-air-conditioned occupied rooms according to DIN 4108, Part 3. Meets the requirements of DIN 18234-1. Used as a separation layer with Rhenofol CG under gravel and extensive green roofs. Fire class B2 or class E.

FDT PE vapor barrier

Declaration of Performance PE vapor barrier

FDT PE vapor barrier

FDT connecting tape

Special adhesive compound on carrier foil. Seam connection for FDT Rhepanol vapor barrier and PE vapor barrier, and for connections to various substrates.

FDT seam tape

Butyl adhesive compound. Seam connection between FDT Rhepanol vapor barrier and PE vapor barrier within the overlap. Meets the requirements of DIN 18234-1.

Protection and separation layers

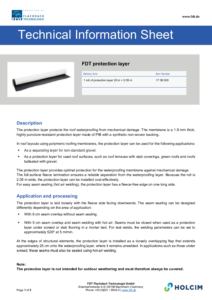

FDT protection layer

Synthetic PIB membrane with polyester fleece on the underside as a highly puncture-resistant protection layer, with a fleece-free welding edge.

FDT protection layer

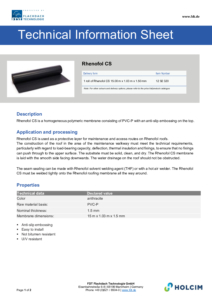

Rhenofol CS

Synthetic membrane with slip-resistant embossing on the upper side. Used as a protection layer for maintenance and traffic paths on Rhenofol roofs.

Rhenofol CS

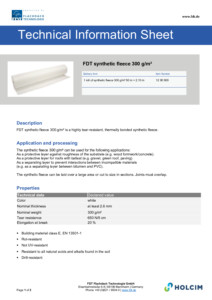

FDT synthetic fleece 300 g/m²

High tear strength and thermally bonded, drill-resistant and alkali-resistant. Used as a protection layer in layer build-ups with Rhepanol.

FDT synthetic fleece 300 g/m²

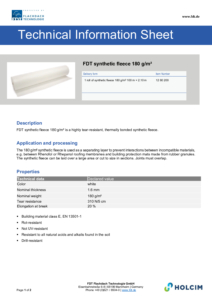

FDT synthetic fleece 180 g/m²

High tear strength, thermally bonded and drill-resistant.

Leveling layer for old, uneven bitumen roofs and timber boarding, and as a separation layer between protection mats and Rhepanol roofing membranes.

FDT synthetic fleece 180 g/m²

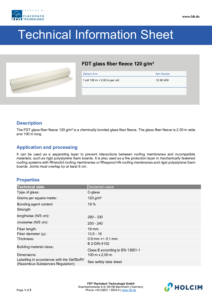

FDT glass fiber fleece 120 g/m²

Chemically bonded glass fiber fleece. Used as a separation layer against interactions between Rhenofol roofing membranes and incompatible materials, such as rigid polystyrene foam boards, and as a fire protection layer in mechanically fastened layer build-ups with Rhenofol and Rhepanol hfk roofing membranes.

FDT glass fiber fleece 120 g/m²

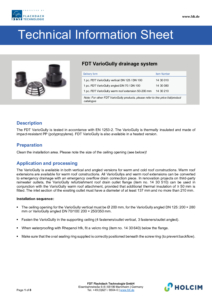

FDT VarioGully

FDT VarioGully, vertical DN 125/DN 100

Reducer DN 125/100 included as standard. Drainage capacity corresponds to DN 125 or, when using the included reducer (DN 125/100), DN 100.

VarioGully datasheet

FDT VarioGully, vertical DN 125/DN 100, heated

Reducer DN 125/100 included as standard. Drainage capacity corresponds to DN 125 or, when using the included reducer (DN 125/100), DN 100.

VarioGully datasheet

FDT VarioGully, angled DN 70/DN 100, heated

Installation height 110 mm. Drainage capacity corresponds to DN 70 or, when using the included adapter (DN 70/100), DN 100.

VarioGully datasheet

FDT VarioGully, angled DN 125

Installation height 195 mm.

VarioGully datasheet

FDT VarioGully refurbishment flange

For existing roof drains from min. 137 mm to max. 210 mm; screws and sealing cord are included as standard.

Only in combination with additional insulation ≥ 50 mm.

FDT VarioGully warm roof extension

Fits all VarioGully base units. For height extension in single-layer, non-ventilated roofs (warm roofs).

Different sizes:

  • for insulation thicknesses from 50 mm to 200 mm
  • for insulation thicknesses from 50 mm to 400 mm
  • for insulation thicknesses > 400 mm as a custom-made version

FDT reducer, DN 125/70 eccentric, black

For existing roof drains from min. 137 mm to max. 210 mm; screws and sealing cord are included as standard. Only in combination with additional insulation ≥ 50 mm.

FDT adapter DN 125/150/OD*160

FDT emergency overflow outlet for FDT VarioGully

This enables simple conversion of all FDT VarioGullys for use as emergency overflows. The accumulation height can be adjusted to the millimeter.

Accumulation heights:

  • 20-50 mm accumulation
  • 20-110 mm accumulation

FDT collars for FDT VarioGully

For securely connecting roofing membranes to the FDT VarioGully. Versions for Rhenofol and Rhepanol roofing membranes and bitumen vapor barrier and polymer bitumen roofing membranes. The Rhepanol hook-and-loop ring is additionally required for connection to Rhepanol hfk roofing membranes.

Versions for:

  • Rhepanol hfk / hg gray / black Ø 400 mm
  • for Rhenofol: Rhenofol C light gray Ø 400 mm
  • for bitumen: bitumen membranes black Ø 500 mm
FDT connection collars

Rhepanol hook-and-loop ring

Molded part for fixing Rhepanol hfk roofing membranes to the FDT VarioGully.
Diameter: 350 mm.

FDT gravel/leaf guard

Gravel/leaf guard for FDT VarioGully.

FDT screw ring

For all VarioGully types.

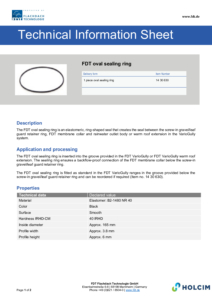

FDT oval sealing ring

For backflow-proof connection of the collar below the screw ring.

FDT oval sealing ring

FDT roll ring

For all FDT VarioGully types.

FDT screw ring tool

Tool for easy and safe installation of the screw ring on the FDT VarioGully.

Drainage

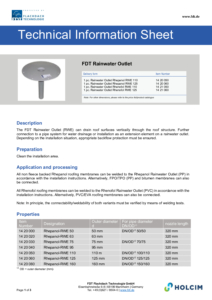

FDT Rainwater Outlet

Vertical drainage through the roof build-up.

Connection type

All unlaminated Rhepanol roofing membranes can be connected to the Rhepanol RWO (PP) according to the installation instructions. Alternatively, FPO/TPO (PP) and bitumen membranes can also be connected. All Rhenofol roofing membranes can be connected to the Rhenofol RWO (PVC) according to the installation instructions. Alternatively, PVC/EVA roofing membranes can also be connected.

External pipe Ø: 50 mm, 56 mm, 63 mm, 75 mm, 95 mm, 110 mm, 125 mm, 140 mm, 160 mm

FDT Rainwater Outlet

FDT leaf guard basket

The leaf guard is suitable for all rainwater outlets and is adapted to the respective diameter by trimming the centering section. Also suitable for all water spouts by trimming the basket.

FDT lip seal

The lip seals are suitable for backflow-proof installation of rainwater outlets into each other or for direct installation into downpipes or existing roof drains.

  • for RWO 95 100/110
  • for RWO 95 125/125
  • for RWO 125 150/160
  • for RWO 160 200/200

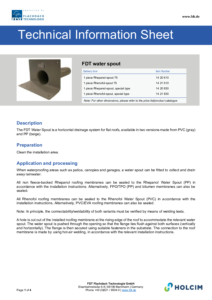

FDT Water Spout

The FDT Water Spout is a horizontal drainage component for flat roofs. Available in two material versions: PVC and PP. All unlaminated Rhepanol roofing membranes can be connected to the Rhepanol water spout (PP) according to the installation instructions. Alternatively, FPO/TPO (PP) and bitumen membranes can also be connected. All Rhenofol roofing membranes can be connected to the Rhenofol water spout (PVC) according to the installation instructions. Alternatively, PVC/EVA roofing membranes can also be connected.

FDT Water Spout

Water Spout order form

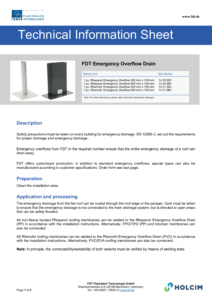

FDT Emergency Overflow Drain

Horizontal emergency drainage from the flat roof through the roof edge or parapet. Further connection to a pipe system for draining water onto suitable open areas or through a free discharge.

Installation notes:

All unlaminated Rhepanol roofing membranes can be connected to the Rhepanol emergency overflow drain (PP) according to the installation instructions. Alternatively, FPO/TPO (PP) and bitumen membranes can also be connected.

All Rhenofol roofing membranes can be connected to the Rhenofol emergency overflow drain (PVC) according to the installation instructions. Alternatively, PVC/EVA roofing membranes can also be connected.
Dimensions: Ø 75, Ø 110, 200 x 100, 300 x 100, 450 x 100, 600 x 100, special type

FDT Emergency Overflow Drain

FDT Emergency Overflow Drain order form

Flat roof penetrations

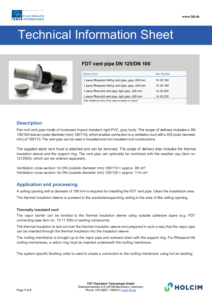

FDT vent pipe DN 125/DN 100

With the included reducer DN 125/100, OD 125/110, connection to the ventilation pipe with DN/OD 100/110 is possible. Made of impact-resistant rigid PVC. With removable cap and support ring. Ready to install with integrated collar for connection to the roofing membrane. Body: gray. Ventilation cross-section: for DN/OD 100/110 = approx. 88 cm2, for DN/OD 125/125 = approx. 114 cm2.

Required deck opening: Ø 190 mm. For insulation thicknesses of 200 mm and 400 mm.

  • for Rhenofol: Rhenofol C light gray
  • for Rhepanol hfk / hfk-bs / hg: Rhepanol h gray
FDT vent pipe DN 125/DN 100

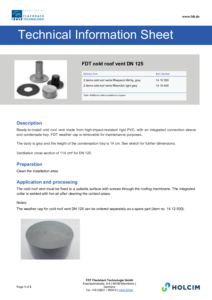

FDT cold roof vent DN 125

Made of impact-resistant rigid PVC. Ventilation cross-section of 114 cm2. The FDT weather cap attached to the FDT vent pipe cap can be removed for maintenance. Ready to install with integrated collar.

Body: gray. Condensate tray height: 14 cm.

  • for Rhenofol: Rhenofol C light gray
  • for Rhepanol hfk / hfk-bs / hg: Rhepanol h gray
FDT cold roof vent DN 125

FDT weather cap DN 125

Made of impact-resistant rigid PVC. For rainproof connection in room ventilation in combination with the FDT vent pipe DN 125 / DN 100 and FDT cold roof vent DN 125. As a spare part for cold roof vent DN 125, it can only be attached in combination with the FDT vent pipe cap.

FDT vent pipe cap

Made of impact-resistant rigid PVC. For use with the FDT vent pipe DN 125/DN 100 and FDT cold roof vent DN 125. For pipe diameter DN 125.

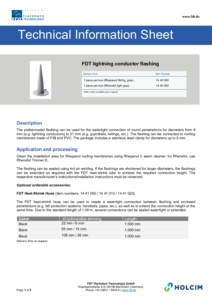

FDT lightning conductor flashing

For connecting roofing membranes to lightning protection systems Ø 8 mm and penetrations up to 51 mm diameter for Rhepanol and up to 53 mm for Rhenofol. Total height: 250 mm.

  • for Rhenofol: directly onto flange
  • for Rhepanol hfk / hfk-bs / hg: directly onto flange
FDT lightning conductor flashing

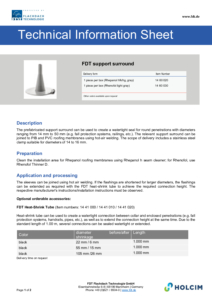

FDT support surround

For connecting the roofing membrane to supports and safety anchors from 14 mm to 50 mm diameter, with stainless steel clamp for diameters from 14 to 16 mm. Flange diameter: 160 mm. Height: 15 cm.

  • for Rhenofol: directly onto flange
  • for Rhepanol hfk / hfk-bs / hg: directly onto flange
FDT support surround

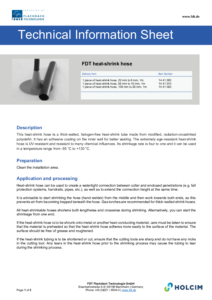

FDT heat-shrink hose

FDT heat-shrink hose

Wall connection and fixing profiles

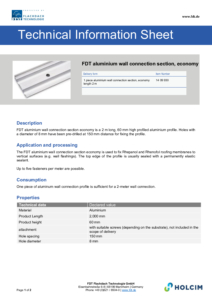

FDT aluminium wall connection section, Economy

Rigid aluminum rail in perforated 3 m lengths. For fixing Rhepanol and Rhenofol roofing membranes to vertical surfaces. Fastening with 5 pieces per meter, hole diameter: 8 mm, hole spacing: 150 mm.

FDT aluminium wall connection section, Economy

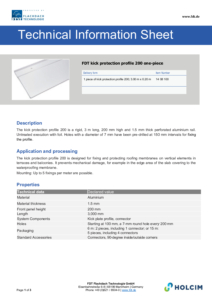

FDT kick protection profile 200, one piece

For fixing and protecting roofing membranes at upstands on terraces and balconies. Rigid, 3 m long, 200 mm high and 1.5 mm thick perforated aluminum rail. Bare version with foil. Fastening 5 pieces per meter, hole diameter: 7 mm. Color: bare aluminum.

FDT kick protection profile 200, one piece

FDT inside corner for kick protection profile 200

For creating a 90° inside corner. Bare version with foil. Color: bare aluminum.

FDT outside corner for kick protection profile 200

For creating a 90° outside corner. Bare version with foil. Color: bare aluminum.

FDT connector for kick protection profile 200

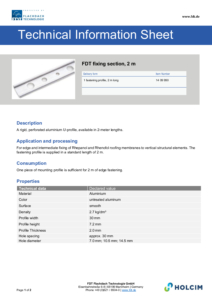

FDT fixing section

Rigid U-profile made of aluminum in perforated 2 m lengths. For edge and intermediate fixing at upstands for Rhepanol and Rhenofol roofing membranes. Profile width: 30 mm, profile height: 7.2 mm, profile thickness: 2.0 mm, hole spacing: approx. 30 mm, hole diameter: 7.0 mm, 10.5 mm, 14.5 mm. Color: bare aluminum.

FDT fixing section

Gravel stop edges

FDT gravel stop edge package

Gravel stop edge made of stainless steel. The FDT holders are fastened to the corresponding waterproofing with a piece of Rhepanol hg or Rhenofol roofing membrane. The clip is made of stainless steel and serves as a joint connector and to stiffen the gravel stop edge above the holder. For roof pitches over 5°, the design must be coordinated with our application engineers.

FDT holders and clips for Rhepanol hfk / hfk-bs / hg and Rhenofol CG

Accessory item for FDT gravel stop edge package

FDT inside corner for gravel stop edge

Inside corner made of stainless steel for inserting the gravel stop edge.

FDT outside corner for gravel stop edge

Outside corner made of stainless steel for inserting the gravel stop edge.

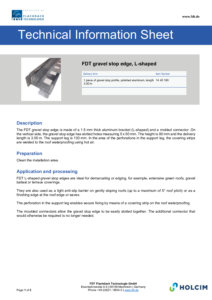

FDT gravel stop edge, L-shaped

FDT gravel stop edge

Installation tools

FDT universal roller

For rolling fleece-backed Rhepanol hfk into the Rhepanol Gripfix strip.

FDT silicone pressure roller

For pressing the Rhenofol roofing membranes to be joined during hot-air welding.

FDT narrow metal pressure roller

1 cm wide. For rolling roofing membranes, molded parts and hard-to-reach areas.

FDT Teflon pressure roller

3 cm wide. For rolling hot-air welded seams on Rhepanol roofing membranes.

FDT pressure roller for standing seam profiles

For rolling round Rhepanol and Rhenofol standing seam profiles, height: 25 mm.

FDT Kehlfix

4 cm wide. For pressing roofing membranes in hard-to-reach areas.

FDT seam tester

For checking hot-air weldable membrane seams.

FDT scissors 25 cm

High-quality, reinforced all-metal scissors. For easy cutting of Rhepanol and Rhenofol roofing membranes.

FDT brush 5 cm

For solvent welding, priming and adhesive application.

EPDM welding aid

High-quality welding aid made of 4 mm EPDM, width: 15 cm, length: 25 m.
For use during seam closure with the automatic welder as required.

FDT PE bottle 1 liter

For easy application of Rhenofol welding paste SB to Rhenofol CV strips.

Disposable gloves

Protective gloves for working with Rhepanol h seam cleaner, Rhepanol h intensive cleaner 50, Rhenofol solvent welding agent, Rhenofol thinner D, etc.
Pack of 50 pieces.

Cleaning wipes

For cleaning and pre-treating Rhepanol and Rhenofol roofing membranes.
Pack of 50 pieces.

FDT foam gun FD 60 cm lance

For applying FDT flat roof foam adhesive.

Customer Service

We will be happy to advise you personally on our products or answer your questions on specific problems. Give us a call:

We are closed – Please send us an e-mail.

We are there for you:

Monday to Thursday : 8.00 am – 4.00 pm
Freitag :  8.00 am – 2.00 pm

Find the specialist consultant for roofing membranes in your area.

Our expert advisors will be pleased to assist you with advice and assistance – even on the construction site.

[wptrigger id=3]

FDT Flachdach
Technologie GmbH

Eisenbahnstraße 6-8
68199 Mannheim
Germany

Our products:

FDT is part of Holcim:
